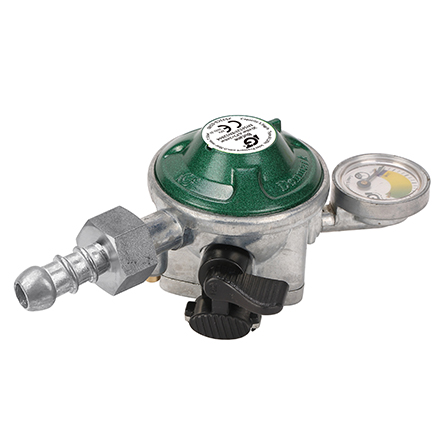

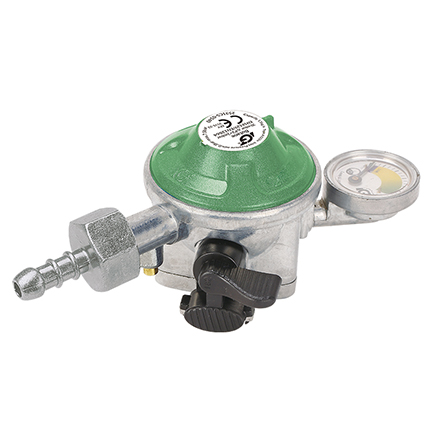

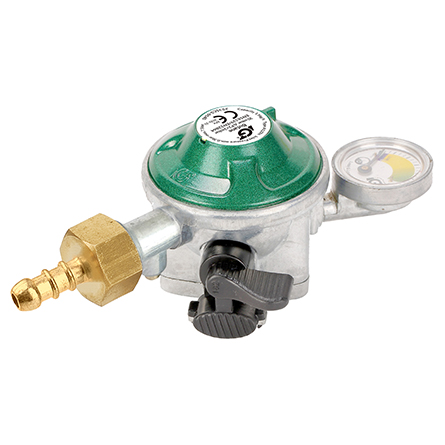

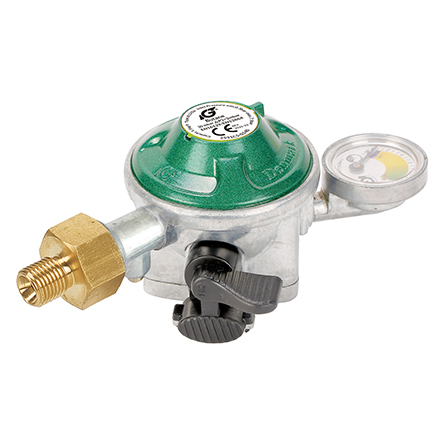

Snap On Compact Low Pressure Regulator Premium Plus Type for A120isp-M/ A121isP-M/ A122isp-M/ A127isp-M

low pressure lpg regulator
low pressure propane regulator psi
low pressure propane regulator
regulator gas low pressure
low pressure regulator supplier

Introduction

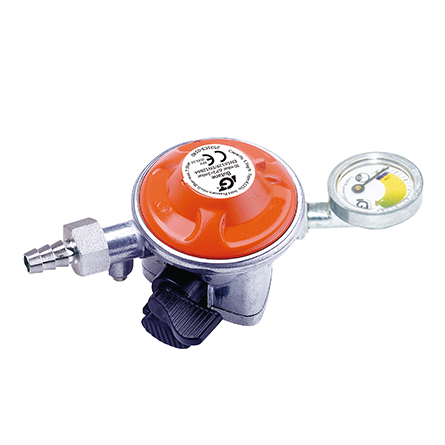

A100isp PMH Orange: Low-pressure gas regulator with manometer and a push button in zinc

A120isp PM: Premium plus type Low-pressure regulator

A121isp PM: Premium plus type Low-pressure regulator with manometer and  G1/4 thread in brass

A122isp PM: Snap On Compact Low-Pressure Regulator with manual excess flow valve and gauge

A122isp PM1: Low-pressure gas regulator with a  push button in brass and manometer

Snap On Compact Low Pressure Regulator Premium Plus Type Specification

Inlet size options:20/21/22/26/27mm/G61
Outlet size options:8/10/11mm, thread 1/4"LH
Outlet pressure options:28mbar,29mbar,30mbar,37mbar
Capacity:1.5kg/h
Excess flow:Equipped with manual excess flow valve with a
push button(stop 100% of the gas flow in case
of any leakage or disconnection
Manometer:Equipped with a manometer for leakage detecting
and low gas level indicating.
Color options:Green, Silver, blue, yellow, orange, red, Silver metallic, Etc.
Regulator size:150×84×62mm
Packing:Plastic bag/ color box/ head card/ Blister
