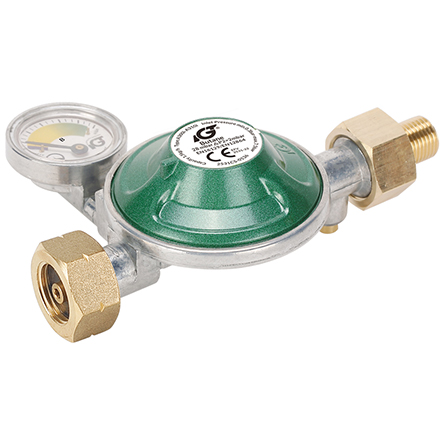

high purity gas regulator

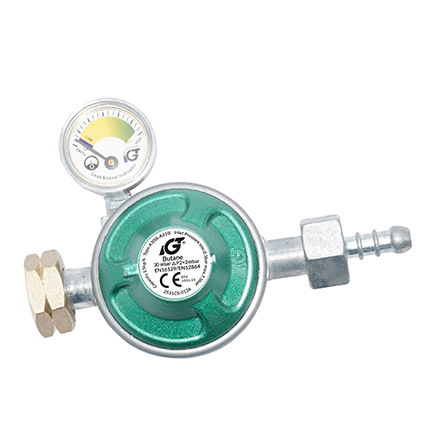

lpg regulator for industrial use

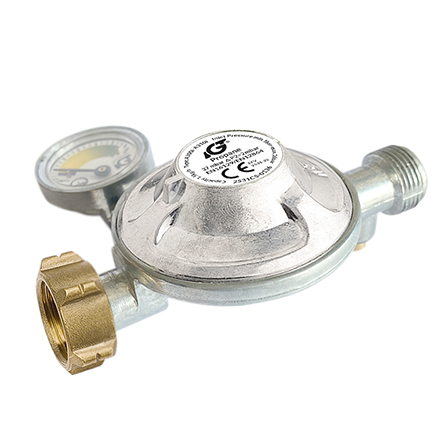

safety regulator gas

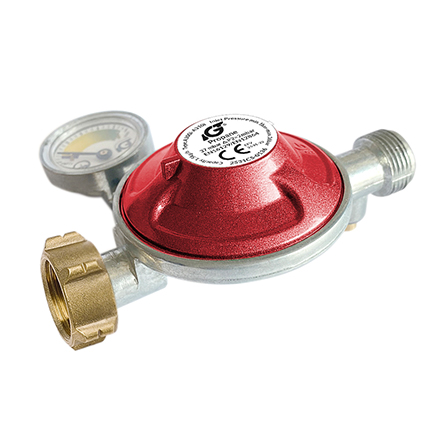

red gas regulator

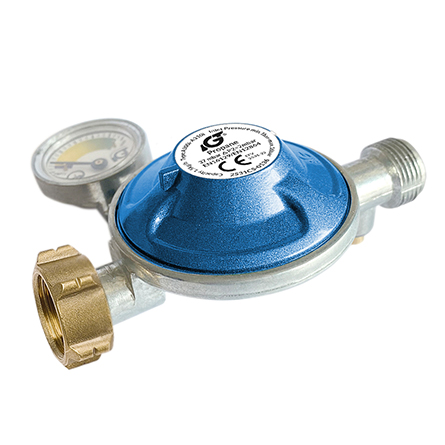

gas regulator with meter

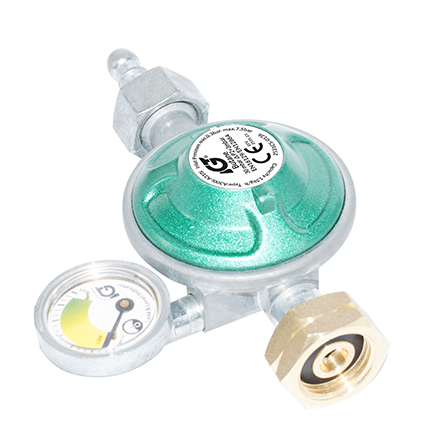

commercial lpg regulator

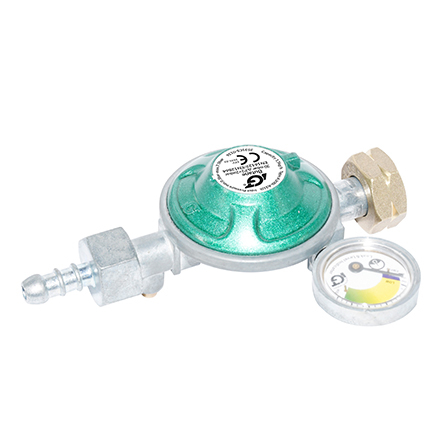

commercial cylinder regulator

Introduction

A30: Premium plus type Hand Wheel Low pressure regulator with manometer and  G1/4 thread in brass

A310iep-PM021: Premium plus type Hand Wheel Low pressure regulator with G1 inlet

A310iep-PM021: Hand Wheel Low pressure regulator with a push button and gauge

A310iep-PM021: Hand wheel  Low pressure regulator with zinc outlet and gauge

CFH(F)_B: Low pressure gas regulator with G2R5 inlet

CFH(F)_P: Propane gas  low pressure  with a gauge and manual excess flow function

CFH(F)_R: Low pressure gas regulator with manometer and a push button valve

Hand Wheel/Threaded-on Regulator Premium Plus Type Specification

Inlet size options:G1/G2/G4/G5/G7/G8/G9/G10/G12/POL
Outlet size options:8/9/10/11mm, thread 1/4"LH
Outlet pressure options:28mbar,29mbar,30mbar,37mbar,50mbar
Capacity:1.5kg/h
Excess flow:Equipped with manual excess flow valve with a
push button(stop 100% of the gas flow in case
of any leakage or disconnection
Manometer:Equipped with manometer for leakage detecting
and low gas level indicating.
Color options:Green,Silver, blue, yellow, orange, red, Silver metallic,Etc.
Regulator size:147x98x47mm
Packing:Plastic bag/ color box/ head card/ Blister
