Hand Wheel/Threaded-on Regulator Premium Type for A300isp/ A310isp

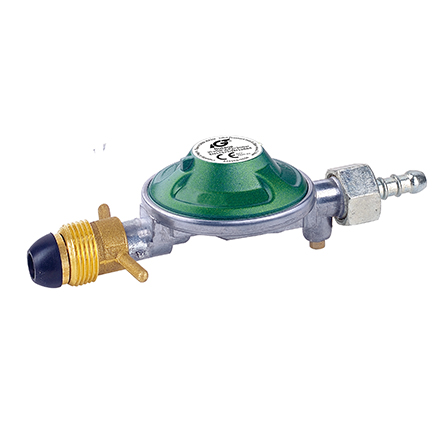

longtime gas regulator

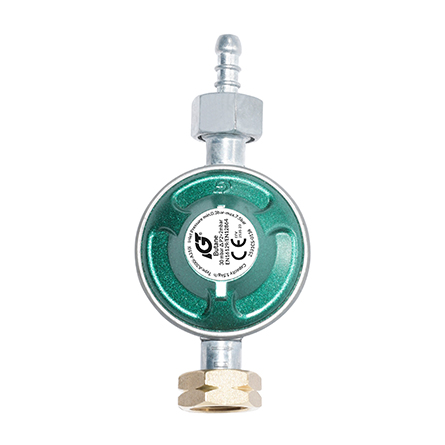

gas changeover regulator

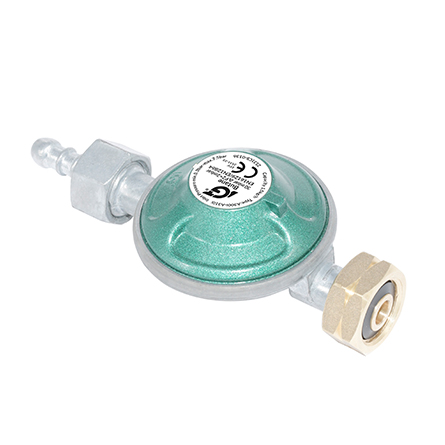

high purity gas regulator

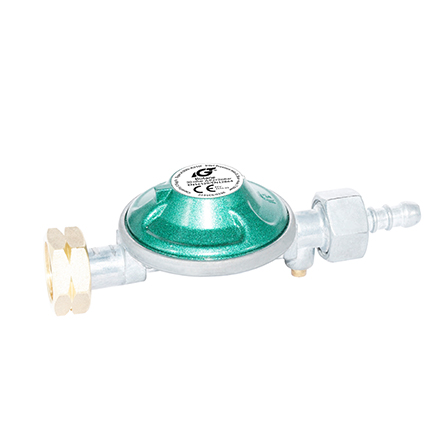

gas changeover valve

Introduction

A310iep-P021: Premium type Hand Wheel Low pressure regulator with a push button

A310iep-P021: Premium type Hand Wheel Low pressure regulator with G1 inlet

A310iep-P021: Hand Wheel Low pressure gas regulator with a push button

A310isp: Hand Wheel  Low pressure POL regulator with a manual excess flow valve

Hand Wheel/Threaded-on Regulator Premium Type Specification

Inlet size options:G1/G2/G4/G5/G7/G8/G9/G10/G12/POL
Outlet size options:8/9/10/11mm, thread 1/4"LH
Outlet pressure options:28mbar,29mbar,30mbar,37mbar,50mbar
Capacity:1.5kg/h
Excess flow:Equipped with manual excess flow valve with a
push button(stop 100% of the gas flow in case
of any leakage or disconnection
Manometer:No
Color options:Green,Silver, blue, yellow, orange, red, Silver metallic,Etc.
Regulator size:160x63x44mm
Packing:Plastic bag/ color box/ head card/ Blister
